Built on Years of Engineering, Testing, and Regulatory Oversight
Deep beneath the Gulf of America lies one of the most important offshore energy opportunities in the world — and the only reason it can be developed at all is because the industry proved, step by step, that it could be done safely.
Known as the Paleogene, this deep geologic trend sits behind the highest-pressure reservoirs ever brought into deepwater production. Reaching it required an entirely new class of technology, built and verified under one of the most rigorous regulatory qualification processes in offshore history. That safety-first foundation makes the Paleogene story worth telling.
What is the Paleogene
The Paleogene represents the continued evolution of offshore energy development in the Gulf of America. These reservoirs, located beneath thick salt formations and thousands of feet below the ocean floor, were once beyond the reach of commercially available offshore technology.
Understanding the Paleogene, Wilcox, and related terms
| Paleocene 66–56 Ma Lower Wilcox deposited here/start of Upper Wilcox deposition | Eocene 56–34 Ma Majority of Upper Wilcox deposited here | Oligocene 34–23 Ma | Miocene 23–5 Ma Mature Gulf production | Pliocene 5–2.6 Ma | Present 0 Ma |
→ New to the terminology? See our Paleogene glossary
At the center of it, the Wilcox Formation went undeveloped for reasons beyond reservoir pressure alone: shut-in pressures at the seabed exceed 15,000 psi — a threshold not unique to the Paleogene, since Miocene reservoirs can run just as high. Operators have been drilling wells into these high-pressure zones for roughly two decades. What was missing was the completion technology needed to safely produce them. That barrier has systematically been addressed.
By the Numbers:
22B+
Barrels of oil equivalent
Estimated resource across the Paleogene Wilcox trend in the deepwater Gulf of America (source)
20,000+ psi
Reservoir pressure
The high pressure regime that required an entirely new class of completion technology to develop these reservoirs
33%
Total Share of GOA production by 2035
With increased commercialization of Inboard Paleogene projects, production from the ultra-high pressure reservoir will account for 33% of US Gulf deepwater production by the next decade (source)
The important story about this resource is why it took decades to reach, and what the industry built to get there safely.
Safety First: How the Industry Earned the Right to Develop the Paleogene
Industry deliberately held back from developing these high pressure zones until the completion technology needed for safe production existed and could be proven.
That is the story of the Paleogene: a resource that stayed undeveloped until safety and engineering caught up to it.
The Qualification Process
Every major component of the 20,000 psi (“20K”) technology ecosystem went through the same disciplined path before it touched an operating well — and that path exists because regulatory oversight evolved specifically to handle a new class of high-pressure equipment that didn’t exist when earlier offshore regulations were written:
- Engineering development — years of design work by subsea equipment manufacturers to build systems capable of withstanding 20,000 psi and 350°F+ conditions
- Rigorous equipment qualification — extensive testing against those extreme conditions before any system was considered field-ready
- Mandatory independent third-party (I3P) review at every stage — outside experts, separate from both the operator and the manufacturer, validated the engineering before
That regulatory approval process was built deliberately, over more than a decade. BSEE first published High Pressure/High Temperature (HPHT) regulations in 2010 — defining an HPHT environment as one with well pressures greater than 15,000 psi or temperatures greater than 350°F. Additional regulations were published in 2016. In 2019, BSEE issued three Notices to Lessees and Operators (NTLs) that formalized the guidance it had been providing through the Conceptual Plan approval process:
NTL 2019-G02
addressing HPHT well design, completion, and intervention operations;
NTL 2019-G03
addressing HPHT equipment design verification and validation testing; and
NTL 2019-G04
addressing how external hydrostatic pressure factors into subsea equipment’s pressure containment calculations.
In 2024, BSEE finalized a new rule extending this framework to novel technology more broadly, equipment or procedures that haven’t been used previously or extensively under the anticipated conditions, haven’t been used before in a given Outer Continental Shelf region, will operate in an HPHT environment, or otherwise fall outside the performance parameters set in 30 CFR part 250. The rule requires operators to submit novel-technology information in a structured format that lets both the operator and BSEE evaluate economic and operational feasibility, adds specific equipment requirements (particularly for barriers) tied to updated industry standards, and formalizes independent third party (I3P) review of operator submissions, or provide BSEE with the ability to require these reviews.
These HPHT-specific rules developed alongside broader offshore safety regulations that also apply to Paleogene operations: the Drilling Safety Rule and the original Safety and Environmental Management Systems (SEMS I) rule, the SEMS II rule, and the Blowout Preventer and Well Control Rule. Together with the HPHT framework, these rules form the layered regulatory foundation the industry had to satisfy before Paleogene development could proceeded.
Deliberately staged regulatory development tracking the technology itself carries through the SEMS framework and the unannounced containment drills described below.
Early projects using this technology are already operating safely, proving these systems work as designed in real-world conditions.
The 20K Technology Ecosystem: Engineered for Safety at Every Layer
Reaching these reservoirs requires purpose-built solutions across every major component of deepwater drilling and completion. Each one carries the same safety pedigree: designed, qualified, and independently verified before ever going into service.
- Wellheads and Blowout Preventers (BOPs) rated to 20,000 psi, designed and qualified by subsea equipment manufacturers through BSEE’s independent third-party verification process
- Drillships purpose-built for the 20K environment — the first vessels in the world equipped with 20K well control systems and 1,700-ton hoisting capacity. These rigs are primarily used for completion operations in the 20K environment.
- Subsea trees, manifolds, and completion hardware rated to 20,000 psi and 350°F+, engineered and built by specialized manufacturers, including Trendsetter Engineering in Houston, TX.
- Well containment infrastructure — industry containment providers operate 20,000 psi capping stacks capable of responding to a well control event in the 20K environment
Spotlight: Trendsetter Engineering’s Trident 20K
One example of what this qualification-to-deployment path looks like in practice: Trendsetter Engineering, a Houston-based subsea hardware company, spent years developing the Trident 20K Open Water Intervention Riser System (OWIRS), building on lessons from its Trident 15K system, first introduced in 2020.
Offshore intervention systems comprise interconnected barriers designed to prevent well blowouts, contain subsea spills, and protect personnel.
Trident 20K completed its first field deployment from the Deepwater Atlas, running a two-well flowback operation at a Shenandoah-area project in the Gulf of America. Trendsetter wet-hopped the system between wells, cutting operational costs and saving several days of critical-path rig time — then brought it back onshore for post-campaign maintenance so it’s ready for its next deployment.
The deployment followed closely on Trendsetter’s delivery of a 20K production manifold and associated subsea components, marking the industry’s first 20K OWIRS in commercial service. It’s a concrete illustration of the broader pattern across the 20K ecosystem: years of engineering and qualification work, culminating in a system proven under real operating conditions.
Modern Well Containment
Two dedicated well containment organizations, the Helix Well Containment Group (HWCG) and the Marine Well Containment Company (MWCC), maintain purpose-built equipment and trained response teams specifically for deepwater Gulf of America operations. This capacity has been built, and continuously improved, in step with the technology it protects.

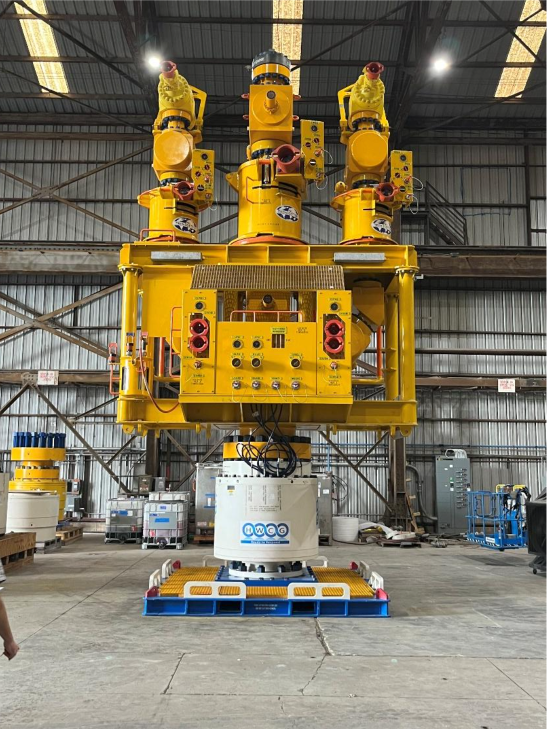

- HWCG’s HWCG maintains two capping stacks — a 15,000-psi Ram Capping Stack and a 20,000-psi Valve Capping Stack — capable of shutting in a subsea blowout in water depths up to 10,000 feet. Where shut-in isn’t possible due to compromised well integrity, HWCG’s flow & capture system can process up to 130,000 barrels of fluid and 220 million cubic feet of gas per day while a relief well is drilled. For further information see the HWCG website: https://hwcg.org/
- MWCC maintains four capping stacks and supporting devices designed to cover a wide range of well pressures and temperatures up to 20,000 psi and 400 degrees Fahrenheit. If an incident well cannot be immediately shut-in, MWCC has two systems at the ready to capture flow from the well – one rig-based and one ship-based – that can be used separately or together for maximum speed and flexibility. Combined, MWCC’s flow back systems can capture up to 100,000 barrels of fluid and 200 million cubic feet of gas per day while a relief well is drilled. For further information see MWCC website https://marinewellcontainment.com/
- Trendsetter Engineering is the provider of capping stacks for both MWCC and HWCG.
Under federal regulations, deepwater operators must prove they have access to robust subsea containment equipment before receiving drilling permits. All operators must submit a Oil Spill Response Plan (OSRP) to the Bureau of Safety and Environmental Enforcement (BSEE) detailing their containment plan before drilling can begin

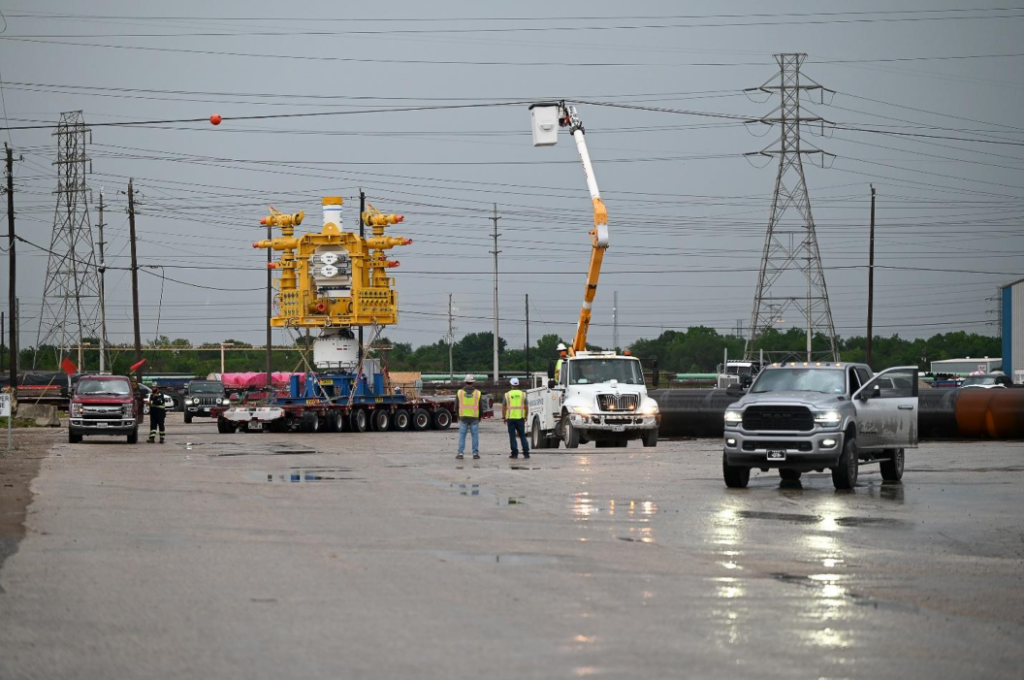

Part of what makes this capability meaningful is the demonstrated speed of deployment, validated under real conditions. In 2023, BSEE conducted unannounced capping stack drills to evaluate the industry’s real-world ability to respond to a subsea well control event. Each drill mobilized operators, along with their well containment providers, to deploy and install equipment to cap a simulated blowout off the coast of Louisiana.
These drills tested the full spectrum of response capabilities — team mobilization, communications, equipment readiness, and capping procedures — under a simulated loss-of-well-control scenario.
Both drills were completed successfully, confirming that industry plans, personnel, and systems are prepared to respond rapidly and effectively in high-pressure situations. BSEE described the exercises as demonstrating strong coordination and performance between regulators and operators.
These unannounced regulatory drills confirm that equipment, logistics chains, and personnel are ready to respond under real-world conditions. They reinforce a culture of preparedness spanning operators, containment organizations, and the regulator, and they are a direct reason the Gulf of America’s modern deepwater safety record looks the way it does.
Technology That Advances Safety and Performance Together
The 20K equipment ecosystem is a safety-driven technology transformation. At every layer, the goal is the same: make operations both safer and more capable at once. In the 20K environment, safety and performance are the same priority.
Subsalt seismic imaging. Salt layers beneath the Gulf once severely limited operators’ ability to see and understand the reservoirs below them, adding uncertainty to every stage of planning. Advances in seismic technology now let operators image these formations with far greater clarity — improving reservoir characterization, drilling precision, and long-term recovery. Better imaging means fewer surprises below the seafloor, and better decisions above it.
Digital operations and predictive monitoring. Modern deepwater facilities generate enormous volumes of real-time operational data. Operators use it for predictive maintenance, continuous system monitoring, and full-lifecycle production planning. That same visibility gives operators continuous insight into well integrity — surfacing anomalies long before they could become incidents. Problems that once required physical inspection are now flagged automatically, often before they develop into operational issues.
Taken together — 20K-rated equipment, subsalt seismic imaging, AI-assisted monitoring, remote subsea robotics, and real-time digital operations — these advances represent a generational step forward in what deepwater development can accomplish, and in how safely that development is carried out.
The Safety and Environmental Management Systems (SEMS) Framework
Underpinning all of this is SEMS, the regulatory framework that requires operators to systematically identify hazards, train personnel, and maintain documented procedures across every phase of offshore activity. It’s the operational culture that ties the engineering, the monitoring, and the containment capability together into a single, accountable system.
Built on Decades of Experience
The 20K ecosystem credibility is the depth of experience behind it. Modern high-pressure systems, digital monitoring tools, and subsea equipment are products of decades of engineering refinement, operational learning, equipment qualification, and regulatory development in one of the world’s most demanding offshore environments.
As detailed in the Qualification Process above, that same regulatory evolution — Independent Third-Party review, SEMS, unannounced drills — grew in step with 20K technology rather than trying to catch up to it after the fact.
Compact Footprint, Large Energy Output
Advances in subsea systems, reservoir management, infrastructure integration, and digital monitoring have let operators produce substantial volumes of oil and gas from a remarkably concentrated operational footprint, with fewer surface facilities than earlier generations of offshore development required.
This is increasingly the model for Gulf of America operations: connecting new projects into established Gulf infrastructure networks rather than building standalone systems — reducing cost, reducing surface presence, and extending the productive life of infrastructure already in place.
Why the Gulf of America Matters
The Gulf of America is one of the world’s most integrated offshore energy ecosystems, with extensive pipeline networks, deepwater ports, fabrication yards, shipyards, engineering expertise, offshore service companies, and existing production infrastructure supporting long-term development. That connectivity is also what makes the safety systems described above possible to deploy quickly and consistently across projects.
| Offshore Production | ~2.2 million BOE/day |
| Annual Investment | $35.9 billion |
| GDP Contribution | $36.8 billion |
| Government Revenues | $6.6 billion |
| Jobs Supported | 433,000 |
The Future of American Offshore Energy
That accumulated experience — qualifying an entirely new generation of technology, earning regulatory approval, bringing it into production safely — is the foundation on which Paleogene development stands, and the one that will carry the next generation of projects that build on it.
The Paleogene reflects how American innovation, engineering, and industrial capability continue advancing offshore energy production safely, efficiently, and responsibly for the long term.
